STRAIGHT TOOTH GEARS / PINIONS
Gambini Meccanica offers to its customers a catalogue of standard products, which
reach the highest quality level thanks to the best materials used and to the experience
the company has developed after years of production and collaboration with its customers.

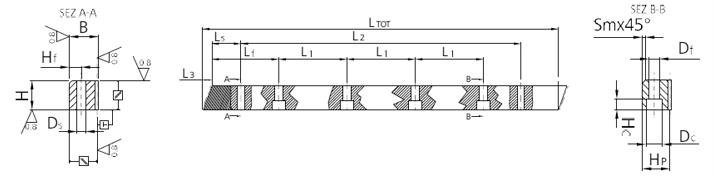

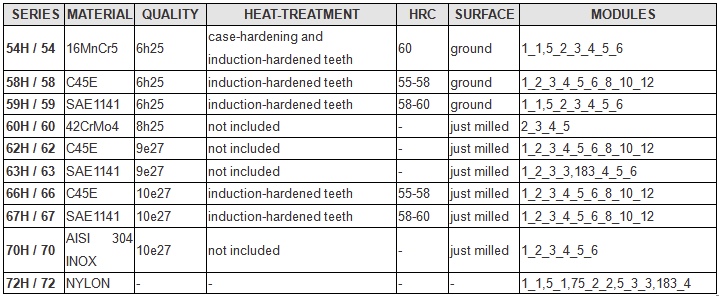

Gambini Meccanica realizes precision racks with helical tooth system by employing
various typologies of raw materials. We manufacture racks from module 0,5 until module
30, from quality class 5 up to quality class 10. For racks quality 5 the maximum
length is 500 mm, while for racks quality 6 we produce single pieces up to 2000 mm.

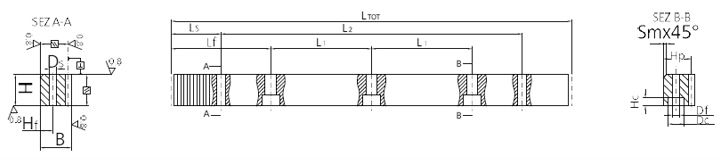

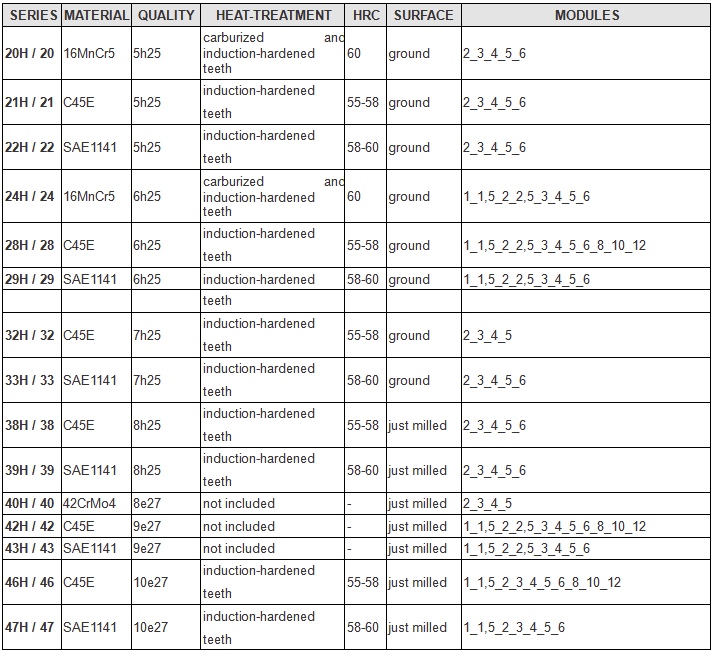

Gambini Meccanica realizes precision racks with straight tooth system by employing
various typologies of raw materials. We manufacture racks from module 0,5 until module
30, from quality class 5 up to quality class 10. For racks quality 5 the maximum
length is 500 mm, while for racks quality 6 we produce single pieces up to 2000 mm.
Gambini Meccanica manufactures precision gears up to a maximum module M30, with just
milled or ground profiles, with helical tooth system, right- or left-hand with any
possible inclination. The maximum external diameter we can realize is up to 1000
mm. We use many different raw materials: C45, 18NiCrMo5, hardened and tempered 38NiCrMo5,
hardened and tempered 16MnCr5, all the alloy or not alloy materials, different types
of nylon, cast irons, alloys of common bronze and bronze-aluminium, alloys of aluminium,
stainless steel and different typologies of Bakelite.
Gambini Meccanica manufactures precision gears up to a maximum module M10, with just
milled or ground profiles, with straight tooth system. The maximum external diameter
we can realize is up to 500 mm. We use many different raw materials: C45, 18NiCrMo5,
hardened and tempered 38NiCrMo5, hardened and tempered 16MnCr5, all the alloy or
not alloy materials, different types of nylon, cast irons, alloys of common bronze
and bronze-aluminium, alloys of aluminium, stainless steel and different typologies
of Bakelite.
Gambini Meccanica manufactures just milled or ground UNI 220/221/222/223 and DIN
5480/5481 splined shafts, with a maximum diameter of 120 mm and a maximum length
of 1000 mm. The materials employed are usually the following ones: C45, 18NiCrMo3,
hardened and tempered 38NiCrMo3 and 20NiCr5.
Gambini Meccanica produces pulleys with the following profiles: L, XL, MXL, HTD3M,
HTD5M, HTD8M, HTD14M, T10, T20, T5, AT5, AT10, AT20, AT5 zero slack, AT10 zero slack.
The utilized materials are the most various: alloy steels, cast irons, aluminium,
stainless steel and nylon. It’s also possible to produce special pulleys, according
to the customer’s drawing, upon request.
Gambini Meccanica manufactures round racks, with ground or drawn surface, with straight
or helical tooth system, right- or left-hand. Quality classes and modules which can
be realized are the standard ones and the length is up to 3000 mm. The most common
raw materials employed are the following ones: SAE1141, C45, hardened and tempered
39NiCrMo5 and stainless steel.
Gambini Meccanica manufactures worm gears up to a maximum module M30, just milled
or ground, with different raw materials: alloy steel, hardened and tempered alloy
steel, case-hardened and inductionhardened steel and stainless steel.
